Stainless Steel 304 Cartridge Filters 3-Bags 10-Bar Pressure For Electrocoating Progress

Product Overview
The Filter Bag is a durable and cost-effective solution designed for liquid filtration during e-coating processes. Built with high-quality 304 stainless steel, this unit is engineered for efficient removal of particles and contaminants from liquids before they enter sensitive coating systems.

Working Principle
Liquid enters the housing through the inlet and flows into the filter bag, which is supported by an internal stainless steel mesh. As the liquid passes through the bag, impurities are trapped inside. The clean liquid then exits through the outlet. The filter bag can be reused after cleaning and is easy to replace, offering long-term operational efficiency.

Product Specification

Number of Bags	3
Filter Bag Number	#2 (17.78×81.28cm, 25micron)
Maximum Operating Pressure	145 PSI (10 Bar)
Design Temperature Range	5 to 50°C
Materials of Construction	304 Stainless Steel
Number of Gaskets	1
Connections	DN100 Flange
Surface Finish	Polish or sand blast
Gasket Material	Buna-N rubber
Gross Weight	80kgs

Key Features

• Material: High-grade SS304 stainless steel for corrosion resistance and long life
• Structure: Compact design with single-bag configuration, easy to install and maintain
• Reusable Bags: Filter bags are washable and replaceable, reducing operating costs
• Cross-Compatible: Designed to be interchangeable with FSI-style bag filter vessels
• Efficient Filtration: Excellent for removing particles in e-coating systems

Applications

• Electrocoating
• Chemical and pharmaceutical processing
• Food and beverage industries
• Water treatment systems

Flow Rate Specification

Number of Bags	3
Filter Bag Number	#2 (17.78×81.28cm, 25micron)
Surface Area per Bag	0.5m²
Surface Area per Vessel	1.5m²
Inlet and Outlet Size	4.0"
Max Flow Rate, GPM	390

Product Tags:

Idle Acid Resistant Pump



Corrosion Resistant Acid Resistant Pump



Vertical Alkali Resistant Pump

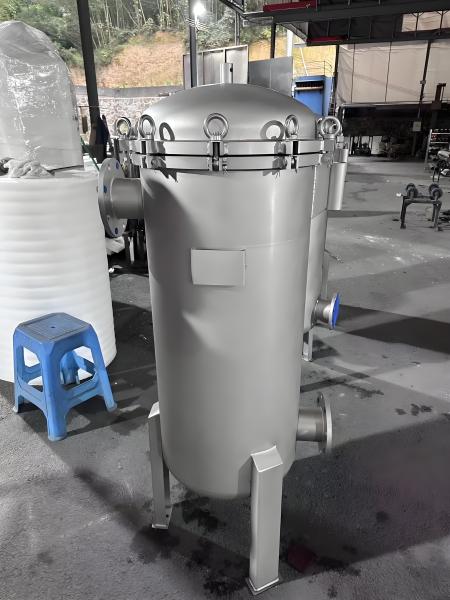

Stainless Steel 304 Cartridge Filters 3-Bags 10-Bar Pressure For Electrocoating Progress Images
